BLiSS - Butted Lightweight Steel Structures

Working closely with project partners Reynolds Technology and Caterham Cars Ltd, the project was part funded by the UK Niche Vehicle Network (NVN) and their Proof of Concept Competition. Reynolds are well known for inventing the tube butting process in 1898 and their lightweight, high strength tubing is used predominantly in the bicycle industry. Caterham Cars make the iconic Super 7 sportscar and as power to weight ratio is a key performance measure in their market, there was a strong interest from our niche automotive partner who we knew well having a long history with the development of the Caterham 7 - in particularly safety and crash test development.

Simpact was responsible for creating a simulation driven process using FEA tools that incorporated up-to-date CAD information from Caterham and KPI's derived by Simpact

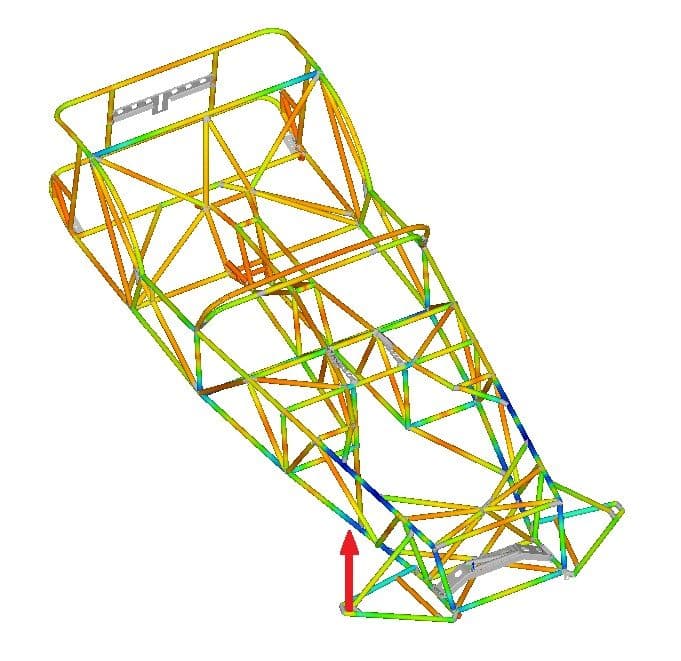

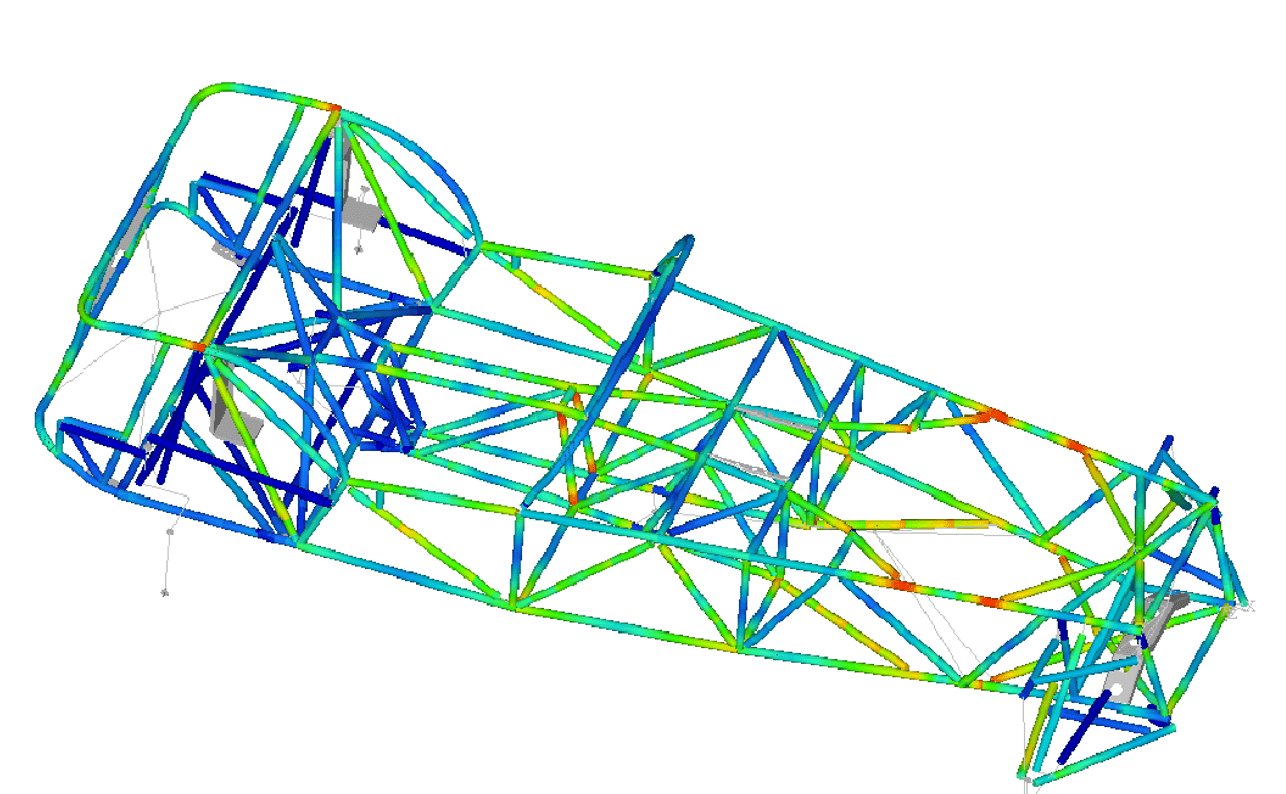

A simple beam element model is well suited for the modelling of a thin walled tubular spaceframe like this. Especially during the early concept design phase of the project where quick run times and investigations are required. The beam element formulation represents the prismatic cross section perfectly and the model can be constructed quickly from the Caterham CAD model.

The front and rear suspension including rear de-Dion tube are added to the model so that the torsion load case can be applied in precisely the same way in which the car is loaded from the road.

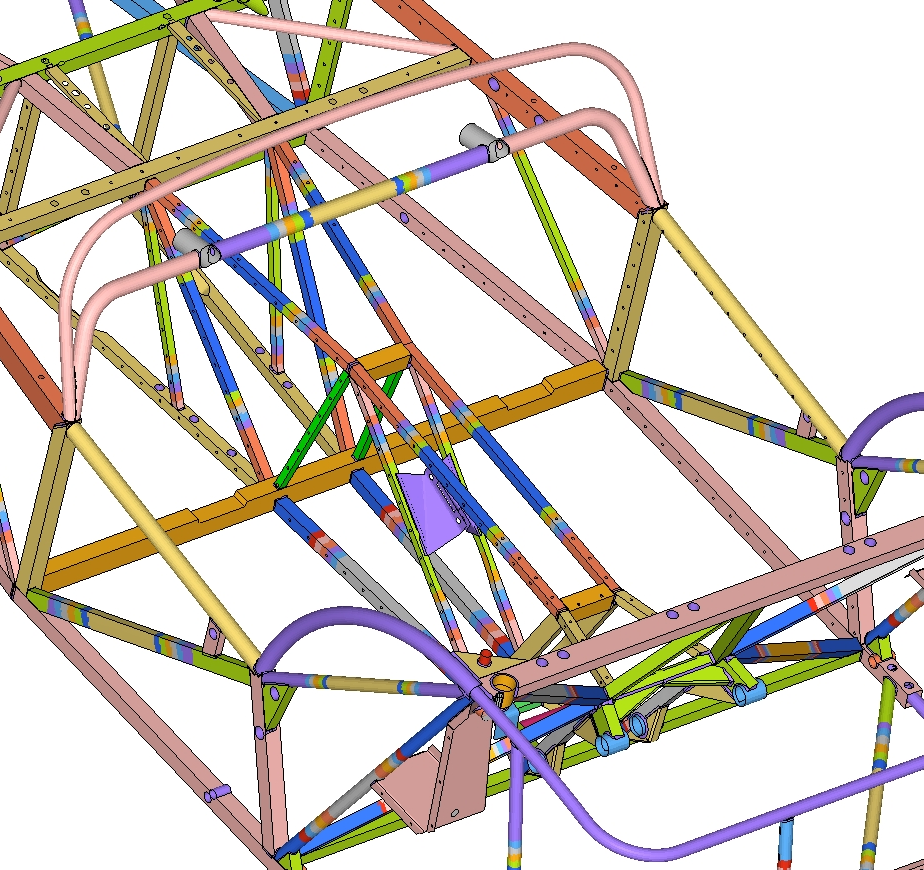

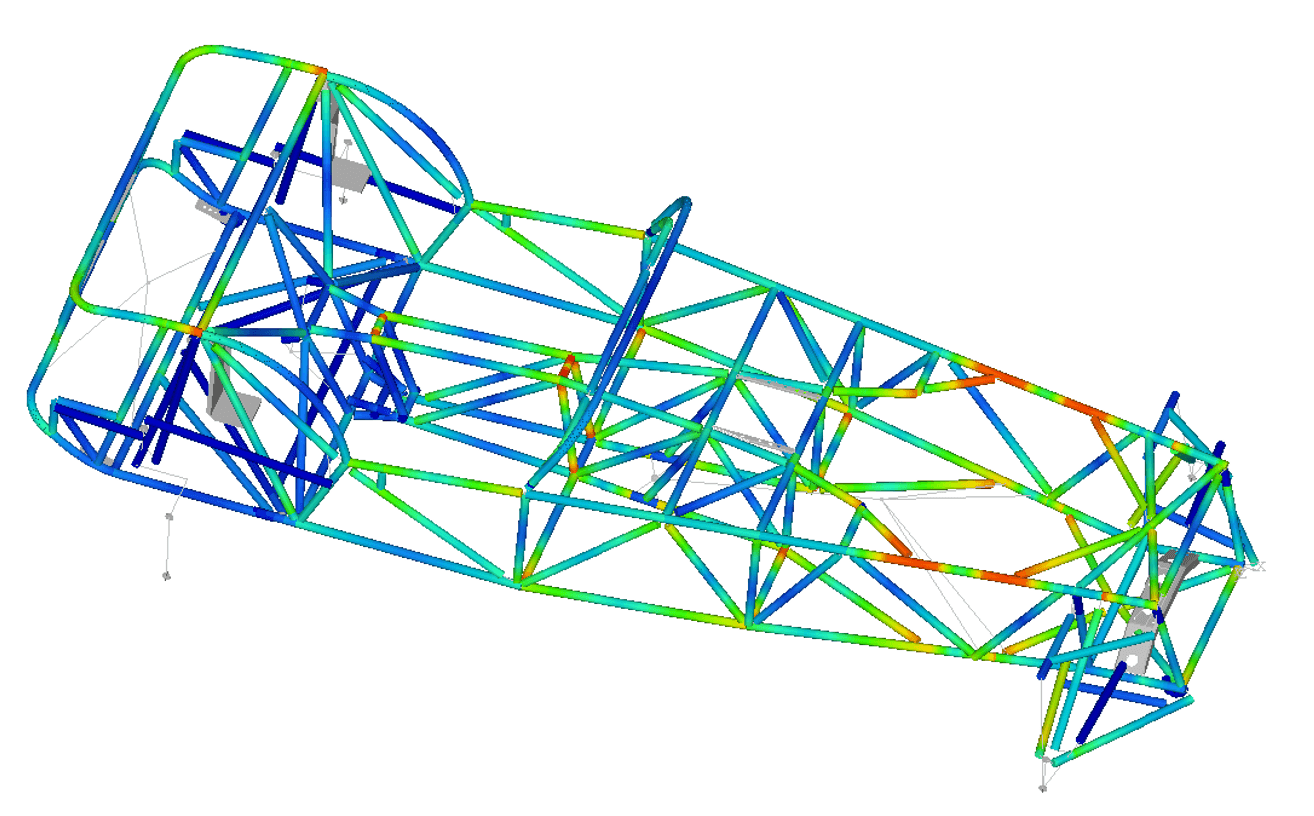

Tube components subject to bending are quickly identified by the beam element model and we work closely with Reynolds to provide a proposed specification for tube substitution.

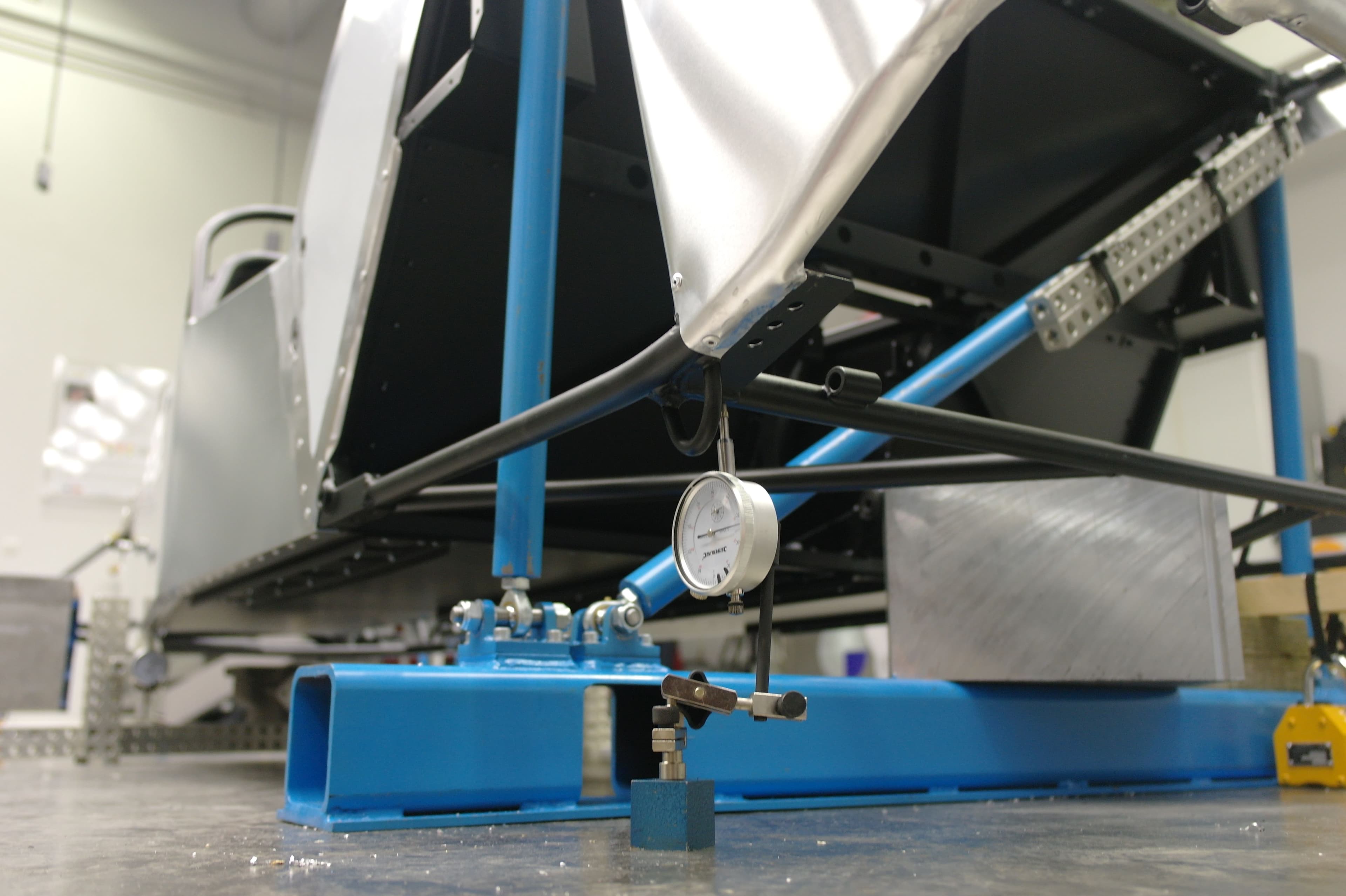

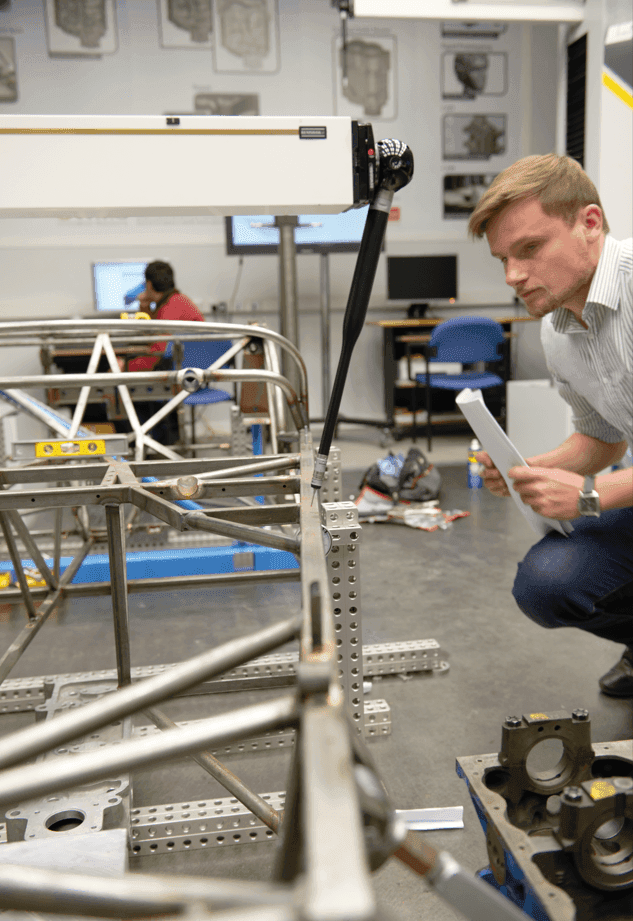

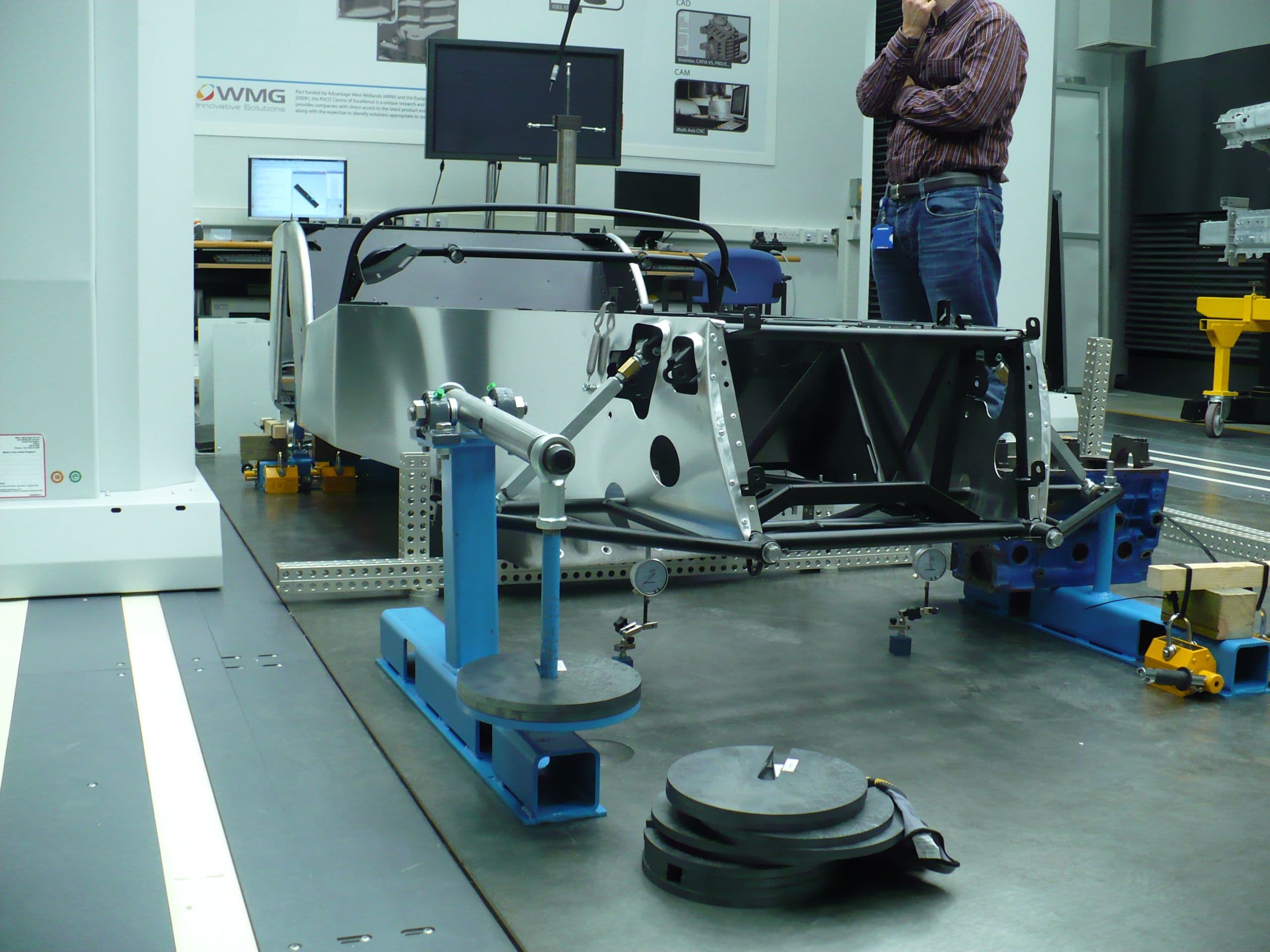

A universal torsion test rig was designed in CAD and manufactured by our local fabrication and machining partner. The rig is designed to asses the main KPI for the project which is torsional stiffness. The design included magnetic clamps which firmly secure the rig to a flat metallic surface as the plan was to make use of the large CMM at WMG at the University of Warwick for the testing. Here we tested the bare Caterham 7 spaceframe, another with aluminium panelling and a selection of roll cages so that we could quantify the effect of the panelling and roll cages on torsional stiffness.

The beam element model is correlated to within 5% of the test data.

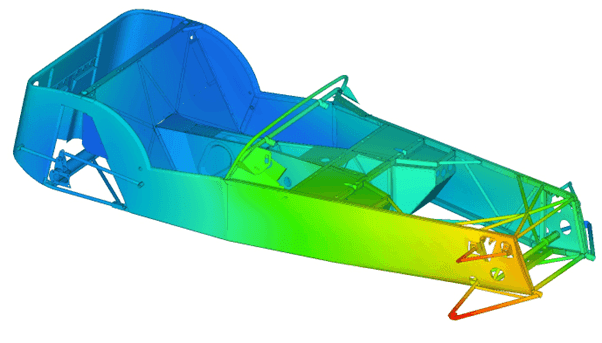

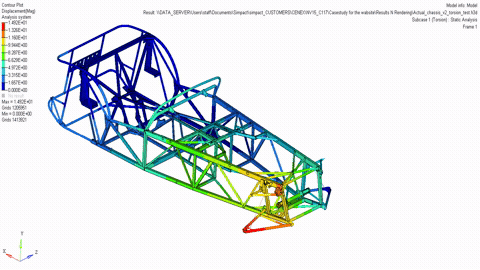

The beam element model was developed into a fully detailed shell element model so that the detail of all of the the joints in the spaceframe and the aluminium panelling/bodywork and front and rear suspension could be included. The investment in this very detailed and impressive FEA model meant that it could be used for a variety of other loadcases such as durability and crash.

By including this level of detail the model was correlated to within 3.3% stiffness of the baseline. The model was then used to refine and confirm the package of butted tube substitutions for Reynolds to manufacture.

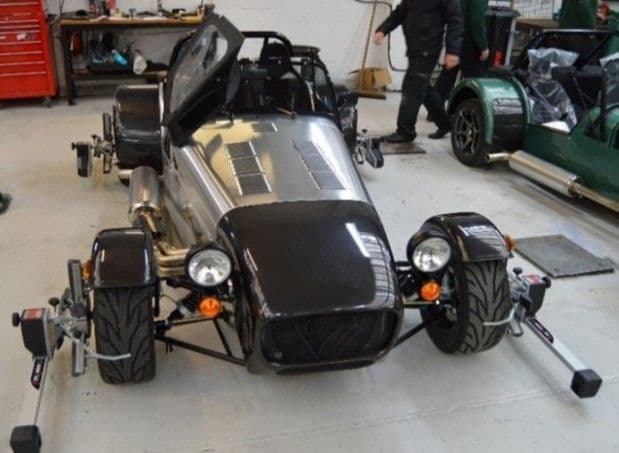

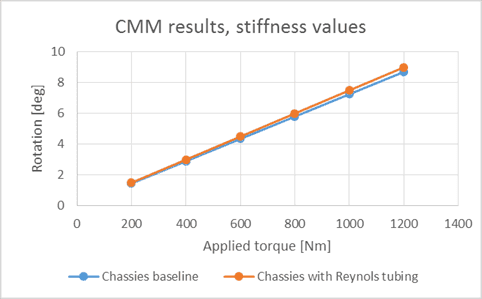

Completion of the project resulted in two proof of concept series 3 vehicle spaceframe prototypes. Manufactured by their chassis supplier, one was sent to Simpact for torsion testing (REY001) and the other was built into a complete vehicle (REY002). Resulting in the worlds’ first butted steel spaceframe, the weight reduction compared to the original benchmark spaceframe exceeded 10%, whilst maintaining the original chassis torsional stiffness.

Existing chassis production was not effected where the spaceframe jigs, as well as vehicle packaging was kept unchanged. The added-on cost for introducing the technology was kept within 20%.

Road testing of REY002 and subjective driver feedback collected by Caterham stated an improved power-to-weight whilst maintaining of handling key performance.
